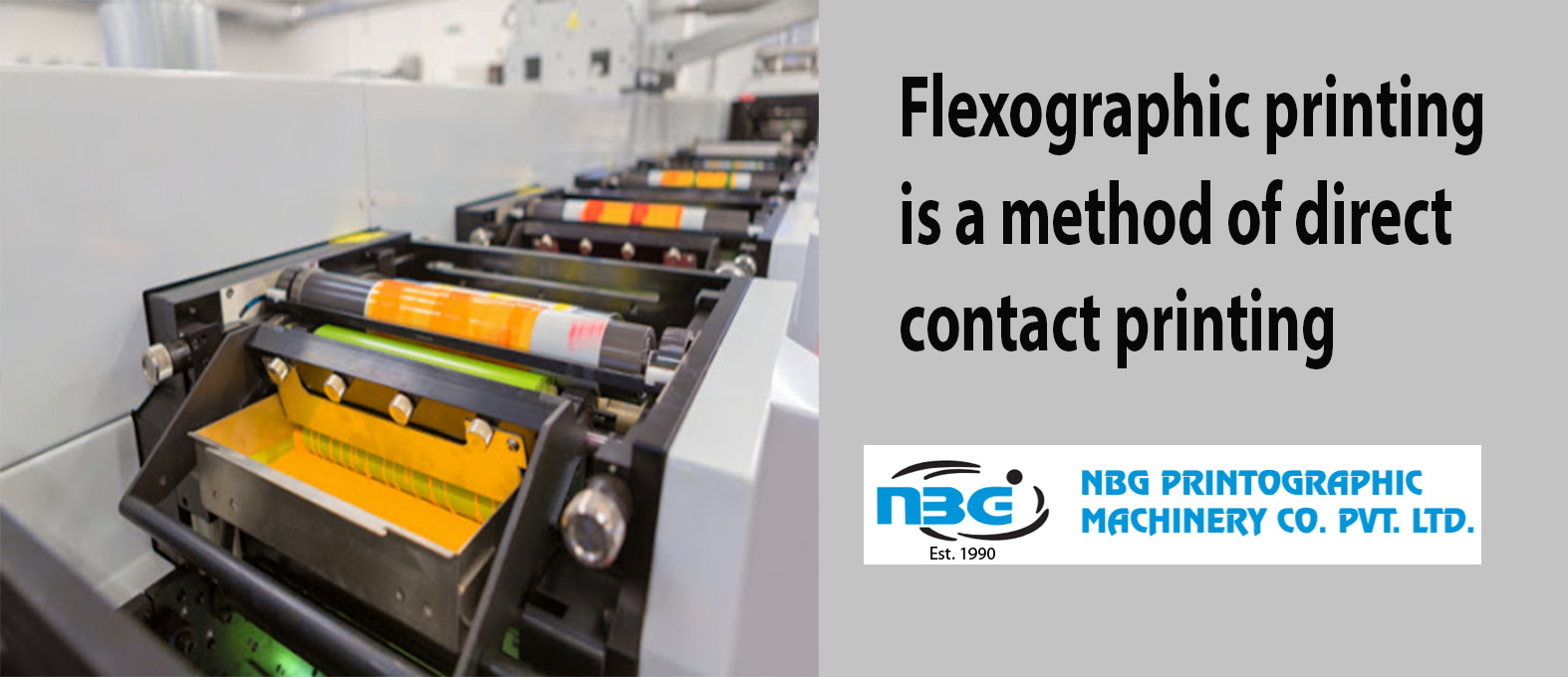

Flexographic printing is a method of direct contact printing

Flexographic printing is a method of direct contact printing. A flexographic (flexo) printer consists of multiple wheels that work in unison to pick up ink from an ink reservoir, deliver the ink to a printing die or plate, and roll the ink onto the material being marked.

Flexo printers are an excellent choice for printing applications as mentioned below.

The printed message does not change often

High quality logo printing is desired

Printed logos or messages are large

Specific colors are required (e.g. Pantone colors)

Printing is only required for short production runs

The budget for printing equipment is limited

Industrial Printing Applications

NBG flexographic printers are used for printing text and high resolution graphics on flat materials such as metals, rubber, building products, textiles, and packaging products. Click to read more about our customers’ applications.

Print Wheel Options

The most important consideration when purchasing a NBG flexo printer is the requirements of the printed message(s). How large is the overall size of message to be printed? How often must the message repeat on your material? The answers to these questions will determine the width and circumference of the print drum needed for your printing job.

The NBG Super Ink Print All uses a universal frame that can accommodate wheels of several different circumference sizes. As shown in this image, the same size message can be printed with three different print wheels, but increasing the circumference of the wheel increases the space between each repeat of the print.

Using Different Printer Widths

Printers are available in all sizes, from wide widths that can print material several feet wide to narrow widths that can be used alone or in groups. If several printers are used together, each one can be placed on or off line for runs of different size materials.

Inking Systems

Flexo printers use either one or two rolls to pick up and apply ink to the print wheel which holds the printing plates or dies. The wheels are tied together with a chain and sprockets so that they turn in unison. The friction of the print wheel making contact with the moving material is what drives the rotation of all the printer’s wheels.

While there is little difference in print quality or ink usage with the two types of inking systems, there are some advantages to a single roll system:

The metering blade (also called a doctor blade) is the wear item compared to a pickup roll

Fewer rolls means fewer adjustments to achieve proper contact pressure

Fewer components to clean and replace

Mounting & Accessories

Mounting frames and backup rolls for integration into your line

Pneumatic cylinders and controls to place printers on and off line

Ink pumps and chamber doctor blade systems for automatic inking

Motor drives with controls to bring printers up to line speed
